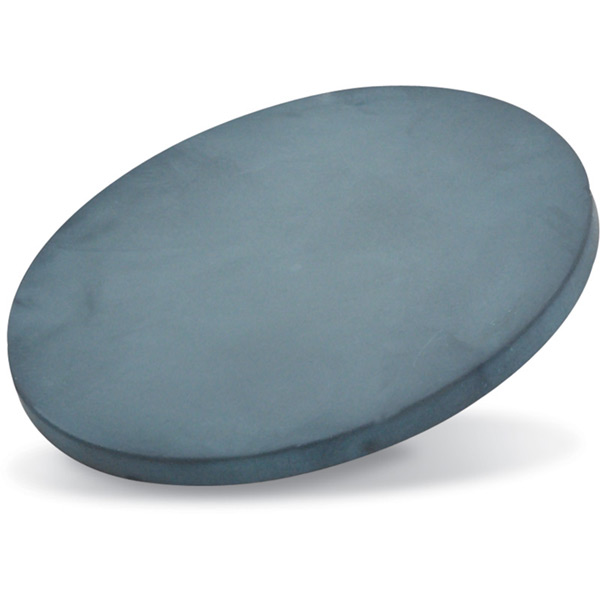

Representative Image

Tungsten Oxide (WO₃) Sputtering Targets

Tungsten Oxide (WO₃) Sputtering Targets Overview

Our comprehensive offering of sputtering targets, evaporation sources and other deposition materials is listed by material throughout the website. Below you will find budgetary pricing for sputtering targets and deposition materials per your requirements. Actual prices may vary due to market fluctuations. To speak to someone directly about current pricing or for a quote on sputtering targets and other deposition products not listed, please click here.

Tungsten Oxide (WO₃) Specifications

Material Type	Tungsten Oxide
Symbol	WO₃
Color/Appearance	Lemon Yellow, Solid
Melting Point (°C)	1,473

Theoretical Density (g/cc)	7.16
Z Ratio	**1.00
Sputter	RF-R
Type of Bond	Indium, Elastomer
Comments	Preheat gently to outgas. W reduces oxide slightly.

** The z-ratio is unknown. Therefore, we recommend using 1.00 or an experimentally determined value. Please click here for instructions on how to determine this value.

Notes:

Bonding is recommended for these materials. Many materials have characteristics which are not amenable to sputtering, such as, brittleness and low thermal conductivity. Request more information, please click here.
This material may require special ramp up and ramp down procedures. This process may not be necessary with other materials. Targets that have a low thermal conductivity are susceptible to thermal shock. Please click here for Ramp Procedure for Ceramic Target Break-in.

Ordering Table

X CLOSE

Material	Description	Size	Purity	Compatible Guns	Notes	Part Number	Price	In Stock	Add To Cart
Material	Description	Size	Purity	Compatible Guns	Notes	Part Number	Price	In Stock	Add To Cart
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 1.00" DIAMETER X 0.125" THICK, +/-0.010" ALL	1.00" Dia. x 0.125" Thick	99.9%	Most Standard Guns	1	EJTWOXX301A2	$302.00
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 1.00" DIAMETER X 0.250" THICK, +/-0.010" ALL	1.00" Dia. x 0.250" Thick	99.9%	Most Standard Guns	1	EJTWOXX301A4	$368.00
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 2.00" DIAMETER X 0.125" THICK, +/-0.010" ALL	2.00" Dia. x 0.125" Thick	99.9%	Most Standard Guns	1	EJTWOXX302A2	$370.00
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 2.00" DIAMETER X 0.250" THICK, +/-0.010" ALL	2.00" Dia. x 0.250" Thick	99.9%	Most Standard Guns	1	EJTWOXX302A4	$440.00
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 3.00" DIAMETER X 0.125" THICK, +/-0.010" ALL	3.00" Dia. x 0.125" Thick	99.9%	Most Standard Guns	1	EJTWOXX303A2	$494.00
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 3.00" DIAMETER X 0.250" THICK, +/-0.010" ALL	3.00" Dia. x 0.250" Thick	99.9%	Most Standard Guns	1	EJTWOXX303A4	$552.00
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 4.00" DIAMETER X 0.125" THICK, +/-0.010" ALL	4.00" Dia. x 0.125" Thick	99.9%	Most Standard Guns	1	EJTWOXX304A2	P.O.R.
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 4.00" DIAMETER X 0.250" THICK, +/-0.010" ALL	4.00" Dia. x 0.250" Thick	99.9%	Most Standard Guns	1	EJTWOXX304A4	P.O.R.
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 5.00" DIAMETER X 0.125" THICK, +/-0.010" ALL	5.00" Dia. x 0.125" Thick	99.9%	Most Standard Guns	1	EJTWOXX305A2	P.O.R.
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 5.00" DIAMETER X 0.250" THICK, +/-0.010" ALL	5.00" Dia. x 0.250" Thick	99.9%	Most Standard Guns	1	EJTWOXX305A4	P.O.R.
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 6.00" DIAMETER X 0.125" THICK, +/-0.010" ALL	6.00" Dia. x 0.125" Thick	99.9%	Most Standard Guns	1	EJTWOXX306A2	P.O.R.
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 6.00" DIAMETER X 0.250" THICK, +/-0.010" ALL	6.00" Dia. x 0.250" Thick	99.9%	Most Standard Guns	1	EJTWOXX306A4	P.O.R.
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 7.00" DIAMETER X 0.125" THICK, SINTERED, +/-0.010" ALL	7.00" Dia. x 0.125" Thick	99.9%	Most Standard Guns	1	EJTWOXX307A2	P.O.R.
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 7.00" DIAMETER X 0.250" THICK, SINTERED, +/-0.010" ALL	7.00" Dia. x 0.250" Thick	99.9%	Most Standard Guns	1	EJTWOXX307A4	P.O.R.
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 8.00" DIAMETER X 0.125" THICK, SINTERED, +/-0.010" ALL	8.00" Dia. x 0.125" Thick	99.9%	Most Standard Guns	1	EJTWOXX308A2	P.O.R.
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 8.00" DIAMETER X 0.250" THICK, SINTERED, +/-0.010" ALL	8.00" Dia. x 0.250" Thick	99.9%	Most Standard Guns	1	EJTWOXX308A4	P.O.R.

X CLOSE

Notes:

Dimensions vary by sputtering gun. Review sputtering gun manual to determine appropriate target size.

Bonded Assemblies Ordering Table

X CLOSE

Material	Description	Target Size	Purity	Bonding Type	Backing Plate Size	Compatible Guns	Notes	Part Number	Price	In Stock	Add To Cart
Material	Description	Target Size	Purity	Bonding Type	Backing Plate Size	Compatible Guns	Notes	Part Number	Price	In Stock	Add To Cart
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 2.00" DIAMETER X 0.125" THICK, +/-0.010" ALL, INDIUM BONDED TO COPPER BACKING PLATE, OFHC 101, 2.00" DIAMETER X 0.125" THICK, +/-0.010" ALL	2.00" Dia x 0.125" Thick	99.9%	Indium	2.00" Dia x 0.125" Thick	Most Standard Guns	1	EJUWOXX302A4	$774.00
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 2.00" DIAMETER X 0.125" THICK, +/-0.010" ALL, ELASTOMER BONDED TO COPPER BACKING PLATE, OFHC 101, Cu, 2.00" DIAMETER X 0.125" THICK, +/-0.010" ALL, W/ KEEPER, 2-56 SCREW	2.00" Dia x 0.125" Thick	99.9%	Elastomer	2.00" Dia x 0.125" Thick	U.S. Gun	—	EJUWOXX302K4	$801.00
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 2.00" DIAMETER X 0.125" THICK, +/-0.010" ALL, INDIUM BONDED TO COPPER BACKING PLATE, OFHC 101, Cu, 2.00" DIAMETER X 0.092" THICK, +/-0.010" DIA, +0/-0.010" THK, FOR TORUS 2	2.00" Dia x 0.125" Thick	99.9%	Indium	2.00" Dia x 0.092" Thick	Standard TORUS 2	—	EJUWOXX302T4	$774.00
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 3.00" DIAMETER X 0.125" THICK, +/-0.010" ALL, INDIUM BONDED TO COPPER BACKING PLATE, OFHC 101, Cu, 3.00" DIAMETER X 0.125" THICK, +/-0.010" ALL	3.00" Dia x 0.125" Thick	99.9%	Indium	3.00" Dia x 0.125" Thick	Most Standard Guns	1	EJUWOXX303A4	$1,045.00
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 3.00" DIAMETER X 0.125" THICK, +/-0.010" ALL, INDIUM BONDED TO COPPER BACKING PLATE, OFHC 101, Cu, 3.00" DIAMETER X 0.092" THICK, +/-0.010" DIA, +0/-0.010" THK, FOR TORUS 3	3.00" Dia x 0.125" Thick	99.9%	Indium	3.00" Dia x 0.092" Thick	Standard TORUS 3	—	EJUWOXX303T4	$1,045.00
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 3.00" DIAMETER X 0.125" THICK, +/-0.010" ALL, ELASTOMER BONDED TO COPPER BACKING PLATE, OFHC 101, Cu, 3.00" DIAMETER X 0.125" THICK, +/-0.010" ALL, W/ KEEPER AND SCREW, FOR 3" TORUS MAG KEEPER	3.00" Dia x 0.125" Thick	99.9%	Elastomer	3.00" Dia x 0.125" Thick	TORUS Mag Keeper 3	2	EJUWOXX303TK4	$1,081.00
Tungsten Oxide	TUNGSTEN OXIDE TARGET, WO3, 99.9% PURE, 4.00" DIAMETER X 0.125" THICK, +/-0.010" ALL, INDIUM BONDED TO COPPER BACKING PLATE, OFHC 101, Cu, 4.00" DIAMETER X 0.125" THICK, +/-0.010" ALL	4.00" Dia x 0.125" Thick	99.9%	Indium	4.00" Dia x 0.125" Thick	Most Standard Guns	1	EJUWOXX304A4	P.O.R.

X CLOSE

Notes:

Dimensions vary by sputtering gun. Review sputtering gun manual to determine appropriate target size.

Bonded assemblies to be used in TORUS Mag Keeper guns require Elastomer bonding.

Target & Backing Plate Service Form

KJLC offers bonding services for both KJLC and customer supplied targets and backing plates. Please fill out our Target & Backing Plate Service Form to acquire a return authorization number.
