Santovac 5(P) - Diffusion Pump Oil & Ultra Polyphenyl Ether Pump Fluid enlarge image tool
Representative Image

Santovac 5(P) - Diffusion Pump Oil & Ultra Polyphenyl Ether Pump Fluid

Santovac 5 Features

  • Well-designed vacuum systems can approach UHV pressure without LN2 traps when using this fluid
  • For pressures in high vacuum ranges, cooled baffles are not needed
  • Exceptional oxidation stability with little tendency to increase in viscosity

Santovac 5P Features

  • The original Santovac 5 further distilled to reduce light end 3- and 4-ring fractions GC tests show 3-ring content below 0.02% and 4-ring below 0.1%)

Specifications Table

Vapor Pressure
@25°C: 4 x 10-10
Pour Point
5°C
Flash Point
288°C
Boiling Point
@0.5 Torr (°C): 275
Fire Point
349°C
Specific Gravity
1.198 (g/cc)
Viscosity
@38°C (100°F), 363/1860
@ 99°C (210° F), 13.1/72
@ 260°C (500° F), 1.2
Color
Clear
Hazardous Decomposition
None
Incompatibility
Flame
Hazardous Ingredients
None

Shelf Life

It is strongly recommended using all fluids and greases at the time of receipt, however when storage is necessary, rotate older stock into use first and observe the recommended parameters listed below.

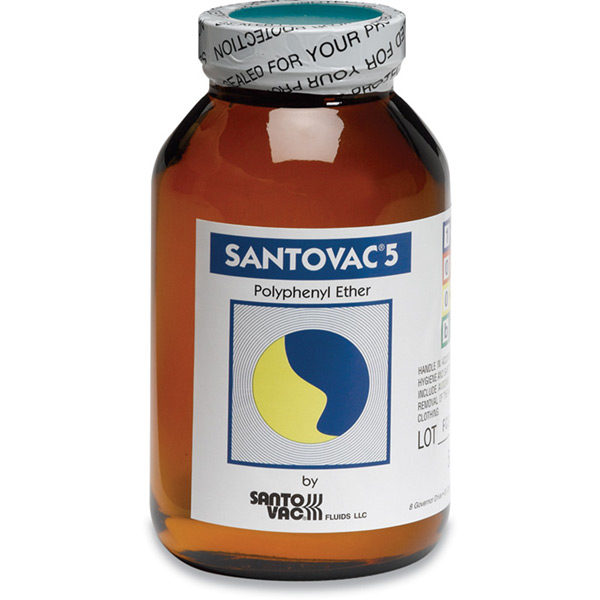

Santovac Jar

Santovac

Santovac 5

The shelf life for Santovac 5 is 7 years from date of manufacture if stored in a sealed container. If product has been opened or stored in a metal can, it is recommended to test the product after 5 years.

Fluids FAQ
Fluids FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
Questions? Let's Talk!
Contact your dedicated Lesker sales team today.
+1 800 245 1656
Note:
  • special case note
    Export Controlled: This is an Export Controlled item, restrictions may apply.

Ordering Table

All dimensions listed below, unless otherwise stated, are in grams.

X CLOSE
Description Grade Size Safety Data Sheet Part Number Price In Stock Add To Cart
Description Grade Size Safety Data Sheet Part Number Price In Stock Add To Cart
EUDF - SANTOVAC 5, 50CC BTL POLYPHENYL ETHER DIFF PUMP FL Santovac 5 diffusion pump oil 50 cc SDS for MS5A MS5A $234.00 In Stock
EUDF - SANTOVAC 5, 100CC BTL POLYPHENYL ETHER DIFF PUMP FL Santovac 5 diffusion pump oil 100 cc SDS for MS5AA MS5AA $484.00 Contact KJLC for Availability
EUDF - SANTOVAC 5, 150CC BTL POLYPHENYL ETHER DIFF PUMP FL Santovac 5 diffusion pump oil 150 cc SDS for MS5B MS5B $578.00 In Stock
EUDF - SANTOVAC 5, 500CC BTL POLYPHENYL ETHER DIFF PUMP FL Santovac 5 diffusion pump oil 500 cc SDS for MS5BB MS5BB $1,392.00 Contact KJLC for Availability
EUDF - SANTOVAC 5, 1000CC BTL POLYPHENYL ETHER DIFF PUMP FL Santovac 5 diffusion pump oil 1,000 cc SDS for MS5BL MS5BL $2,528.00 Contact KJLC for Availability
EUDF - SANTOVAC 5, 1GAL CAN POLYPHENYL ETHER DIFF PUMP FL Santovac 5 diffusion pump oil 1 gallon SDS for MS5CA MS5CA $8,434.00 Contact KJLC for Availability
EUDF - SANTOVAC 5, 500CC BTL,ULTRA PURE POLYPHENYL ETHER, DIFF PUMP Santovac 5P Ultra 500 cc SDS for MS5PBB MS5PBB $2,932.00 Contact KJLC for Availability
