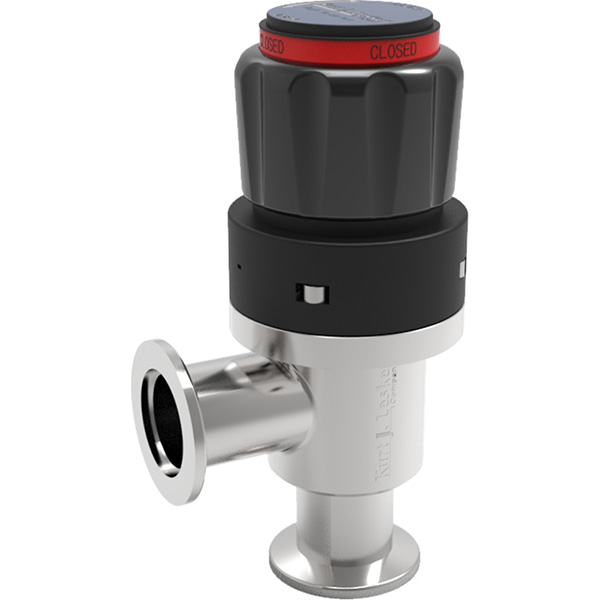

Representative Image
KJLC Safety Locking Angle Valve (Manual)
The KJLC locking valve is a general purpose angle valve for high vacuum and foreline applications that features a locking mechanism for the closed position with a red visual indicator on the actuator.
Features and Benefits
- Long life cycle
- Cost saving
- Particle reduction
- Mechanical lock ensures closed position
- Visual confirmation valve is in closed position
- Easy maintenance and operation
- Compact structure
KJLC Locking Angle Valve Opening
KJLC Locking Angle Valve Closing
Specifications Table
| Manufacturer | KJLC |
|---|---|
| Pressure |
Torr Min: 5.000 x 10-9 Torr Max: 760 Torr mbar Min: 6.600 x 10-9 mbar Max: 1000 mbar |
| Rates |
Helium Leak Rate 5.000 x 10-8 mbar*L/s 5.000 x 10-9 Pa*m^3/s 4.900 x 10-8 sccs 3.700 x 10-8 Torr*L/s |
| Temperature |
Actuator 60.0 ºC 140 ºF Bakeable 60.0 ºC 140 ºF Closed Bake 100 ºC 212 ºF Open Bake 100 ºC 212 ºF |
|
Shaft Seal Material |
300 Series SS Bellows
|
|
Cycle Life |
10,000 |
|
Position Indicators |
Yes
|
|
Normal Position |
Any
|
|
Max Δ P Before Open |
750
Torr
|
|
Bonnet Seal Type |
Flourocarbon (FKM)
|
|
Actuator Type |
Manual
|
|
Valve Body Material |
304L SS
|
|
Valve Seal Material |
Flourocarbon (FKM)
|
|
Locking Function |
Full Close Self Lock
|
X CLOSE
