Micro-Electronic Filaments

Overview

Tungsten filaments in a variety of shapes and numbers of wires. Choose a heater shape that best matches the substrate's area requirements and the characteristics or form of material you plan to heat.

Please Select a Category:

Coils

Coils

Coils

Coils

Loop

Loop

Loop

Loop

Point

Point

Point

Point

Spiral

Spiral

Spiral

Spiral

Coils

6 Coils (Tungsten)

	Reference	No. Per Pack	Volt	Amps	Watts	Temp.	Description	Part Number	Price	In Stock	Add To Cart
	Reference	No. Per Pack	Volt	Amps	Watts	Temp.	Description	Part Number	Price	In Stock	Add To Cart
	1 Wire x 0.030" Dia.	5	3.59	25	90	1800°C	TUNGSTEN FILAMENT, 6 COILS 1 7/8"L X 3/16"ID, 5/PKG	EVSME11030W	$23.00
	3 Wires x 0.025" Dia.	5	3.13	44	138	1800°C	TUNGSTEN FILAMENT, 5/PKG, 6 COILS, 1 7/8" L X 3/16" ID-1"	EVSME113025W	$12.00

4 Coils (Tungsten)

	Reference	No. Per Pack	Volt	Amps	Watts	Temp.	Description	Part Number	Price	In Stock	Add To Cart
	Reference	No. Per Pack	Volt	Amps	Watts	Temp.	Description	Part Number	Price	In Stock	Add To Cart
	1 Wire x 0.030" Dia.	5	2.47	27	67	1800°C	TUNGSTEN FILAMENT, 5/PKG, 4 COILS, 1 7/8" L X 3/16" ID-1"	EVSME12030W	$22.00
	3 Wires x 0.025" Dia.	5	2.30	47	108	1800°C	TUNGSTEN FILAMENT, 5/PKG, 4 COILS, 1 7/8" L X 3/16" ID-1"	EVSME123025W	$23.00

Loop

1 Loop (Tungsten)

	Reference	No. Per Pack	Volt	Amps	Watts	Temp.	Description	Part Number	Price	In Stock	Add To Cart
	Reference	No. Per Pack	Volt	Amps	Watts	Temp.	Description	Part Number	Price	In Stock	Add To Cart
	1 Wire x 0.030" Dia.	5	1.95	26	51	1800°C	TUNGSTEN POINT SOURCE, 5/PKG, MICRO. 1 7/8" L X 3/8" H	EVSME13C030W	$25.00
	3 Wires x 0.025" Dia.	5	1.56	53	83	1800°C	TUNGSTEN MICRO-ELECT SOURCE, 5/PKG, 1-7/8" L X 3/8" H	EVSME13C302W	$26.00

Point

1 Point (Tungsten)

	Reference	No. Per Pack	Volt	Amps	Watts	Temp.	Description	Part Number	Price	In Stock	Add To Cart
	Reference	No. Per Pack	Volt	Amps	Watts	Temp.	Description	Part Number	Price	In Stock	Add To Cart
	1 Wire x 0.030" Dia.	5	1.25	33	41	1800°C	TUNGSTEN POINT SOURCE, 5/PKG, MICRO., 1 7/8" L X 1/4" H-1/4"	EVSME13A030W	$22.00
	3 Wires x 0.025" Dia.	5	1.08	61	66	1800°C	TUNGSTEN POINT SOURCE, 5/PKG, MICRO., 1 7/8" X 1/4" H-1/4"	EVSME13A302W	$23.00

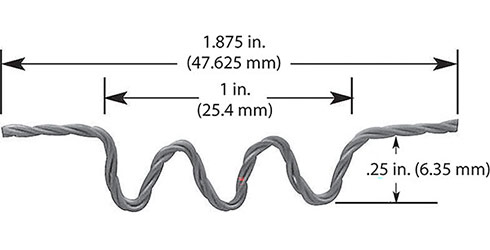

3 Point (Tungsten)

	Reference	No. Per Pack	Volt	Amps	Watts	Temp.	Description	Part Number	Price	In Stock	Add To Cart
	Reference	No. Per Pack	Volt	Amps	Watts	Temp.	Description	Part Number	Price	In Stock	Add To Cart
	1 Wire x 0.030" Dia.	5	1.95	27	53	1800°C	TUNGSTEN POINT SOURCE, 5/PKG, MICRO 1, 7/8" L X 1/4" H-1"	EVSME13B030W	$24.00
	3 Wires x 0.025" Dia.	5	1.68	52	87	1800°C	TUNGSTEN POINT SOURCE, 5/PKG, MICRO., 1 7/8" L X 1/4"H-1"	EVSME13B302W	$25.00

Spiral

2.5 Turn Spiral (Tungsten)

	Reference	No. Per Pack	Volt	Amps	Watts	Temp.	Description	Part Number	Price	In Stock	Add To Cart
	Reference	No. Per Pack	Volt	Amps	Watts	Temp.	Description	Part Number	Price	In Stock	Add To Cart
	1 Wire x 0.030" Dia.	5	3.21	24	77	1800°C	TUNGSTEN HEATER FILAMENT, 5/PKG, MICRO, 1 7/8" L X 1/2" DIA X 3/8" H	EVSME14030W	$50.00
	1 Wire x 0.040" Dia.	5	2.90	36	104	1800°C	TUNGSTEN HEATER FILAMENT, 5/PKG, MICRO 1 7/8" L X 1/2" DIA X 3/8" H	EVSME14040W	$54.00

3.5 Turn Spiral (Tungsten)

	Reference	No. Per Pack	Volt	Amps	Watts	Temp.	Description	Part Number	Price	In Stock	Add To Cart
	Reference	No. Per Pack	Volt	Amps	Watts	Temp.	Description	Part Number	Price	In Stock	Add To Cart
	1 Wire x 0.030" Dia.	5	4.18	23	96	1800°C	TUNGSTEN HEATER FILAMENT, MICRO, 5/PKG, 1 7/8" L X 3/4" DIA X 3/8" H	EVSME15030W	$59.00
	1 Wire x 0.040" Dia.	5	3.63	34	123	1800°C	TUNGSTEN HEATER FILAMENT, 5/PKG, 1 7/8" L X 3/8" H, 0.040" WIRE	EVSME15040W	$62.00

▲
