To ensure that you receive the correct configuration of MultiCentre it is essential to provide as much information on the potential applications as possible.

If gases or vapours are involved in your process please complete the information below:

10.) Are any of the following materials incompatible with your process? (please tick all that apply)

Tantalum

Molybdenum

Not Applicable

Stainless Steel

Copper

Aluminium

Inconel

Manipulation Options

Insertion Length & Rotation required? Please specify below:

Heating Options

17.) What type of thermocouple do you require?

Type 'N' Thermocouple

Type 'K' Thermocouple

Type 'E' Thermocouple (for LHe cooling option)

Other (please specify)

Cooling Options

Advanced Stage Options

If you would like to know more about our unique advanced stage options please tick the relevant items below:

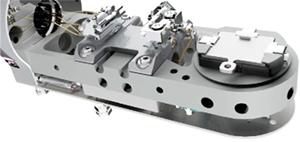

Additional Parking Stages with Heating/Cooling

Single and Dual Parking positions
Direct current heating capability
LHe cooling option
QMB (Quartz Micro Balance) for FTM (Film Thickness Monitoring)
E-beam heater module mounted on flag-style sample plate

Please send me more information on additional parking stages

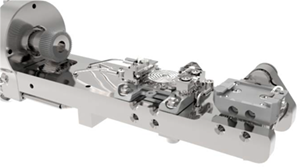

Additional Tilt Axis

Provides additional tilt of the sample holder about an axis normal to the central manipulator axis and in the plane of the sample surface.
Sample can be cooled with LN2 or LHe.
Capable of sample biasing and sample current measurement.

Please send me more information on additional tilt axis option

Additional Comments

Sample Transfer Arms (Magnetically-coupled)

With unrivalled magnetic coupling strength, Power Probe sample transfer arms provide smooth, secure and accurate transfer of samples. Available in a range of stroke lengths with industry standard gripper options.

Please send me information on sample transfer arms

Wobble Sticks

UHV Design wobble sticks benefit from high power magnetic coupling ensuring secure, smooth and precise manipulation of samples. Available in a range of stroke lengths with industry standard gripper options.

Please send me information on wobble sticks

Carousel Parking Stage for Flag Style Sample Plate

The Sample Parking Stage for 'Flag' style sample plates commonly used in surface analysis instrumentation, has been designed to accommodate Omicron, Specs and Aarhus Flag style sample plates. Available with 4,8,12 and 16 flag style parking positions.

Please send me information on the carousel parking stage

Rotary Telescopic Transfer Arm

Ultra-compact, UHV compatible rotary sample transfer arm with 760mm telescopic reach. Designed to provide sample transfer in radial distribution (UFO) chambers. Available in 2-axis and 3-axis configurations.

Please send me information on the RTTA

Looking for something else?

If you are looking for something that is not listed in this questionnaire, please provide brief details below and we will try to help.

	Gas	Partial Pressure (mbar, Torr or Pa)	Temperature	Duration
1.
2.
3.
4.

Insertion Length Required? This is the distance from the mounting flange to the center of the sample holder.
Standard - 240mm	Other (please specify in mm)
Secondary (Azimuthal) Axis Rotation
Not Required	Manual	DC Motor	Stepper Motor
Primary (Polar) Rotation
Not Required	Manual	DC Motor	Stepper Motor	Stepper Motor with Hypoid Gear Option (0.02° reproducibility)

20.) LN2 Dewar required?	No dewar required	10L capacity	25L capacity
	5L capacity	15L capacity	35L capacity

MultiCentre Questionnaire

Application Details
