Automated Thin Film Deposition Cluster Tool
OCTOS™
Automated Thin Film Deposition Cluster Tool
The Kurt J. Lesker Company® OCTOS cluster tools are proven R&D and pilot production systems for in vacuum transfer between multiple process chambers.
Typical applications include Magnetic Tunnel Junctions and Spin Logic devices (GMR, TMR, MRAM, STT), Organic Light Emitting Devices (OLED), Solar Cells (PV, OPV).
The OCTOS cluster tools feature single or multiple substrate cassette load locks and allow process recipe steps to be completed in vacuum without exposing the substrate to atmosphere. OCTOS provides the ability to automatically process substrates sequentially one at a time or in parallel to increase throughput. Substrate tracking ability is available and full process datalogging is standard.

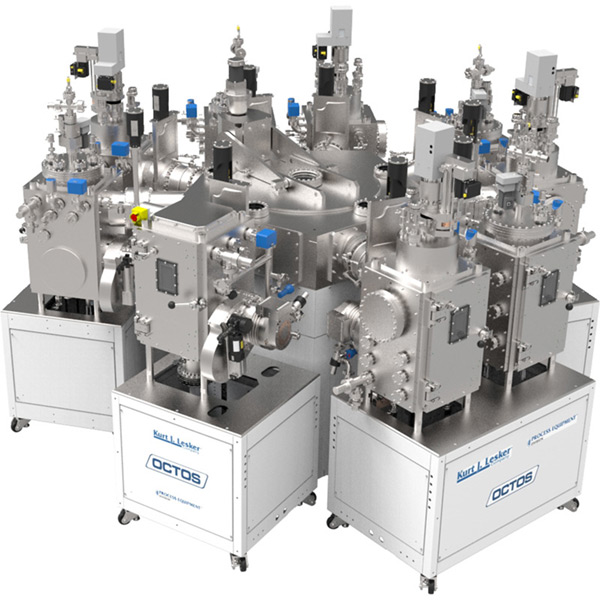

Process chambers are arranged around a central robotic distribution chamber to suit your application.
KJLC's eKLipse software allows user-friendly recipe creation along with a reliable, uninterruptable controller that allows process completion, regardless of the state of the computer user interface. For more information on this intuitive, unique, and reliable software package, please see the Software Tab
KJLC has been manufacturing the OCTOS cluster tool platform since 1999. Most of our OCTOS cluster tools have become workhorses for their owners and are still in daily use, including one that has processed over a million substrates.
Techniques Offered:
- Electron Beam Evaporation
- Thermal Evaporation
- Magnetron Sputtering
- Organic Evaporation
- Atomic Layer Deposition
Options:
- HV or UHV Process Modules
- Plasma Cleaning
- Substrate Annealing
- Mask Storage and in-situ Mask Changing
- Glove Box Integration
- Custom Process Modules
- Transfer to in-vacuum analysis chambers such as XPS
- Integration with third party process chambers like PLD or CVD
Substrate Handling
Two OCTOS robotic substrate distribution chambers are offered: OCTOS 6 and OCTOS 10. Both use industry standard vacuum compatible robots. The OCTOS chambers are available with turbomolecular or cryogenic pumping packages to fit your needs.
Robot Transferring Samples.

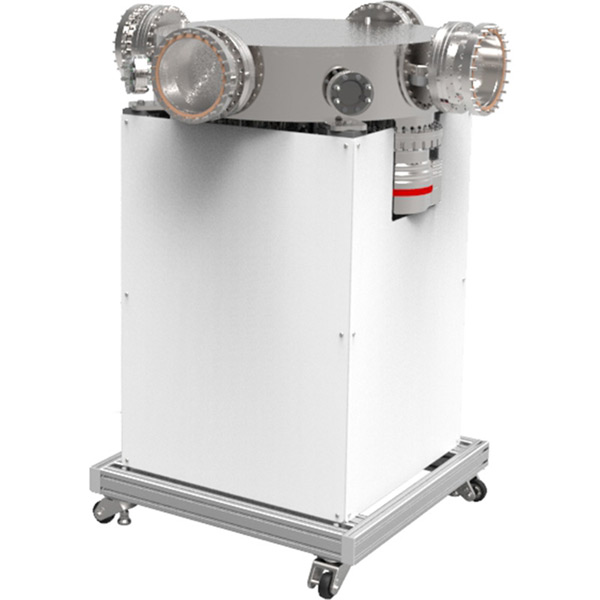

OCTOS 6 Substrate Distribution Chamber
- R&D robotic distribution chamber
- Standard substrate sizes up to 6" (150mm) diameter
- Uses Genmark AVR Robot with 5 lb. Payload, > 80,000 hours MTBF
- Maximum of six process modules including single and multiple substrate cassette load locks. The number of potential process chambers is limited by substrate and process module size
- Computer controlled using KJLC eKLipse software

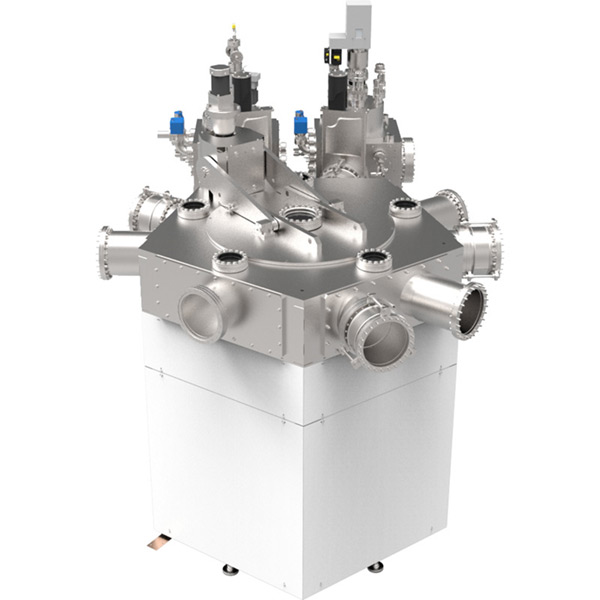

OCTOS 10 Substrate Distribution Chamber
- R&D or Pilot Production capable
- Standard substrate sizes up to 8" x 8" (200mm x 200mm)
- Uses Genmark GB-9 Robot with 25lb payload, > 80,000 hours MTBF
- Maximum of ten process modules including single and multiple substrate cassette load locks. The number of potential process chambers is limited by substrate and process module size
- Computer controlled using KJLC eKLipse software
Standard Process Modules
A variety of standard modules are available for thin film deposition processes. Most are based on Kurt J. Lesker Company standard system platform designs. Custom modules are also available for specialty applications.

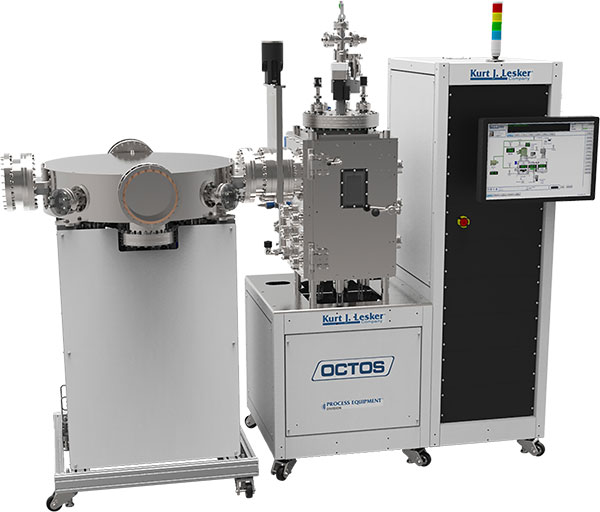

HV PVD Modules
Based off standard KJLC PRO Line PVD modules, these process modules offer tried and true solutions to your magnetron sputtering, e-beam evaporation and thermal evaporation process needs.

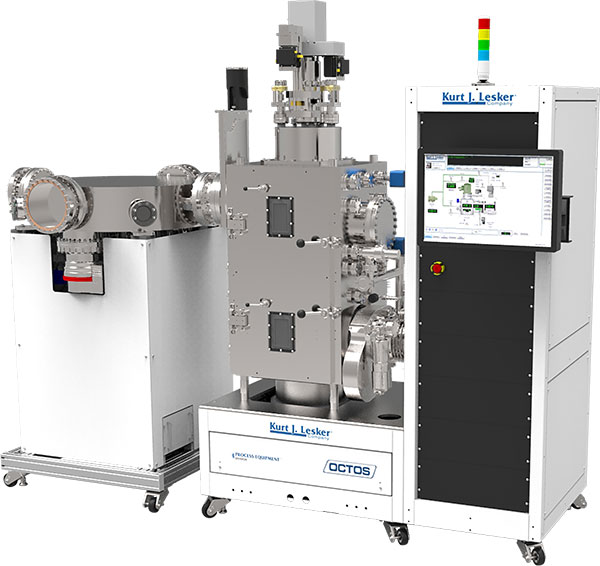

HV Organic Modules
Based off standard KJLC SPECTROS modules. The OCTOS organic modules provide small molecule organic material thin film deposition capabilities as well as in-situ shadow mask changing and glove box interfaces.

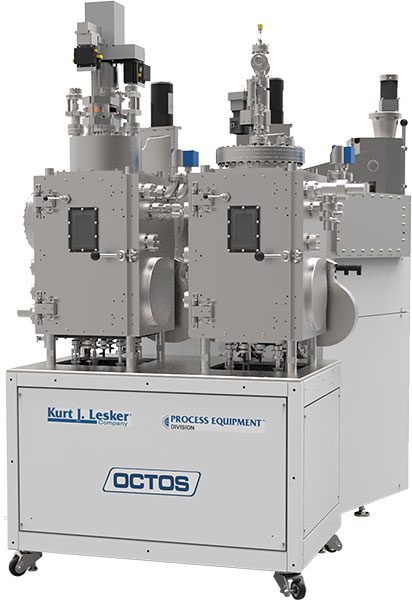

Dual Chamber Modules
Dual chamber modules allow the number of process chambers to be maximized on an OCTOS 10 based cluster tool. Two process chambers are mounted to a single framework and occupy only one facet on the OCTOS 10 substrate distribution chamber. Dual Chamber Modules are not available on the OCTOS 6 based cluster tools.

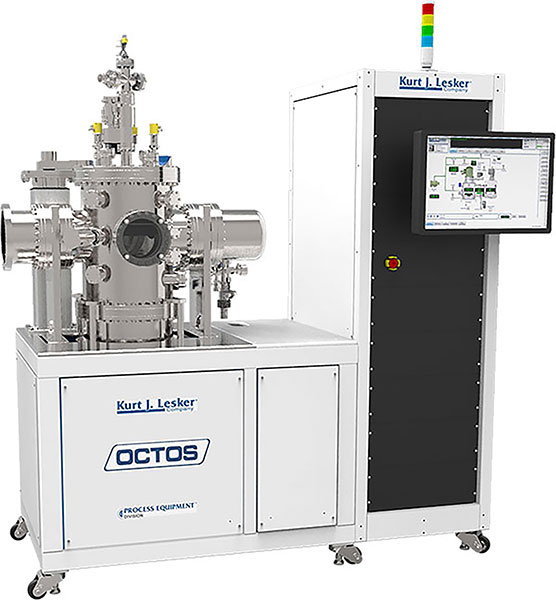

UHV Modules
UHV compatible magnetron sputtering and e-beam evaporation modules are available for processes requiring pressures in the 10-9 range or lower. All metal sealed chambers and bakeout packages are provided as the application dictates. These modules are particularly well suited to magnetic tunnel junction and superconducting device fabrication.
ALD Modules

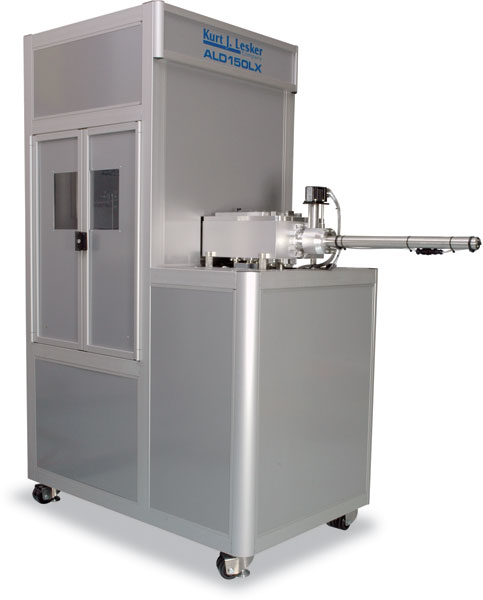

Based off standard KJLC ALD150LX modules, these process modules facilitate thermal and plasma enhanced atomic layer deposition techniques.

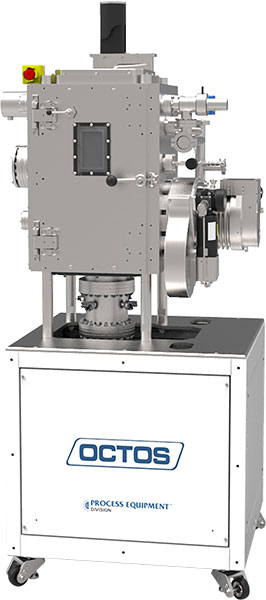

Multi Substrate Load Lock Modules
Multi substrate load lock modules allow OCTOS cluster tools to maximize throughput and versatility. The ten shelf cassette provides a fully automated batch processing capability or recipes to be assigned to individual substrates and processed unattended. Two Multi-Substrate Load lock modules can be combined on one facet of the OCTOS 10 based cluster tool as duel load locks or entry and exit locks. The OCTOS 6 cluster tool can accommodated only one Multi Substrate Load Lock.
Architecture Overview
Kurt J. Lesker Company® eKLipse™ Controls Software is utilized on all KJLC platforms. The eKLipse™ controls platform utilizes a .NET application running on a Windows PC for its User Interface and Recipe Editor. Equipment automation is accomplished via a standalone Real Time Controller.
Recipes
- Graphical Recipe Builder – Easily create recipes by clicking on the desired component and set that item's attributes
- Scripted Recipe Builder – A more traditional "scripted" recipe editor exposes more details for setting or checking the value of any system component during a process.
Reliable
- Real Time Controller – The system operates independently of the Windows software package and will continue the recipe should the software / computer malfunction.
- Independent Thermal Evaporation Thin Film Control – There is no third party software requiring a "handshake" or "handoff" between the Systems Manufacturers software and the thin film controller's software.
Unlimited Recipes, (import/export capable)
- Unlimited recipes with user security level features
- Recipe import/export capability (for transferring recipes between similarly equipped tools)
- Any recipe step can be configured to allow the user to alter a value, enabling process condition changes, without affecting the master recipe. As an example, at the time of execution, the recipe can prompt the user for the desired deposition thickness, or power setting.
- Consistent User experience across all deposition techniques and KJLC platforms (Sputter, Thermal, EBeam, ALD)
- Multi chamber and multi PC control for cluster tools
Custom Chart Recorder and Datalogging
- Custom Chart with up to 10 simultaneous plots
- Chart Recorder can be used to display any setpoint or feedback parameter
- Automatic datalogging of each recipe step for all recipes
- Chart data and configuration can be saved
- Graphical selection of signals to be recorded
Custom Maintenance Counters
- Custom Maintenance Counters are available for each component
- Periodic Maintenance interlocks and recipe checks can be configured for any maintenance counter
- Sputter Target kiloWatt*Hour and custom material usage tracking
User Security
- Supports multiple user accounts and password levels with custom security access for recipes and screens
- Software screen access can be customized per user
- Recipe editing and manual operation features can be assigned on a per user basis;
- Users with full access have the ability to edit recipes and control interlocks. Restricted access users will be limited to running certain recipes and have no control over interlocks.
- Every control object can be assigned to a standard user security level.
- Individual screen access can be separately assigned to any user.
Multi User Facility Features
- System event log captures all user login/logout events, all recipes executed, and system status messages
- Interlocking of vacuum and deposition equipment provides continuous system status monitoring while restricting unapproved system usage (no need to 'power off' system screen or PC)
Remote Support Utility and Apps
- Customized Version of TeamViewer allows remote support (free Android and IOS apps)
- Remote connection supports system monitoring/control and file transfer
