Endplates for the Cylindrical Chamber Builder

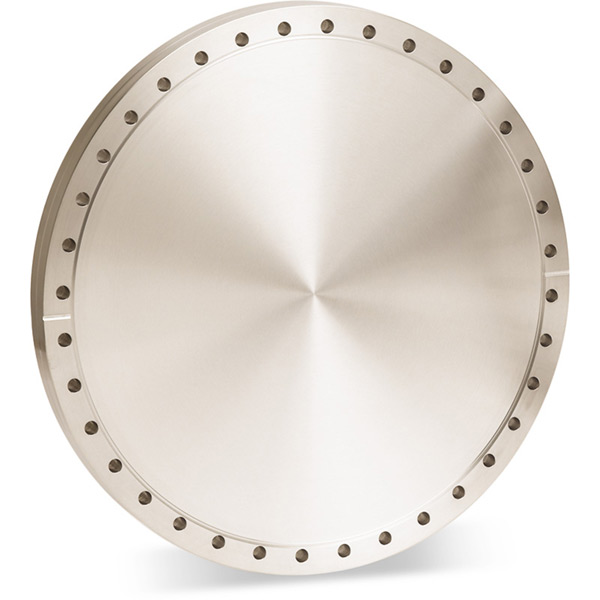

Endplates, also known as top plates or baseplates are available in 304SS or 6061-T6 Aluminum. Endplates can be used in conjunction with our series of chambers built on the Chamber Builder™.

Standard Features

• Manufactured from 304 stainless steel or 6061-t6 aluminum
• Disc-shaped, 1" thick
• ISO K style flange
• ISO F style flange
• Conflat
• Male & female wire-seal
• Flat units have a polished sealing surface to accept an o-ring or l-gasket seal
• O-ring sealed endplates capable of reaching high vacuum (hv) levels
• Conflat and wire-seal flanges capable of reaching ultra high vacuum (uhv) levels

Available Options

• Designed to have a customizable port configuration on the Chamber Builder™

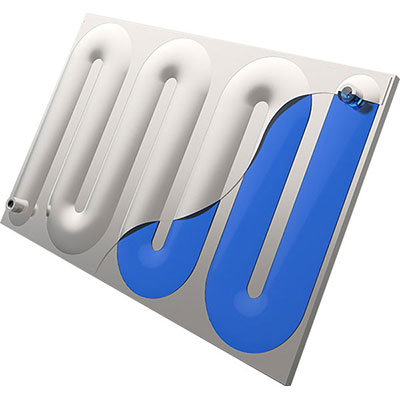

• Hydra~Cool™ & double wall water cooling available for this product
• Radial mounting tabs
• Standard frames – carbon steel

Downloads & Ordering

All of our standard chamber designs may be purchased through our website. Please contact us to discuss any required modifications or options. Additionally, we offer the following Chamber Downloads (see table below) to assist our customers with their chamber selection:

• Dimensional 2D Drawings in Adobe PDF format
• Engineering Files in DXF (2D) and STP (3D) formats

For problems downloading files, viewing 3D models, or other related questions read our Chamber Downloads FAQ.
