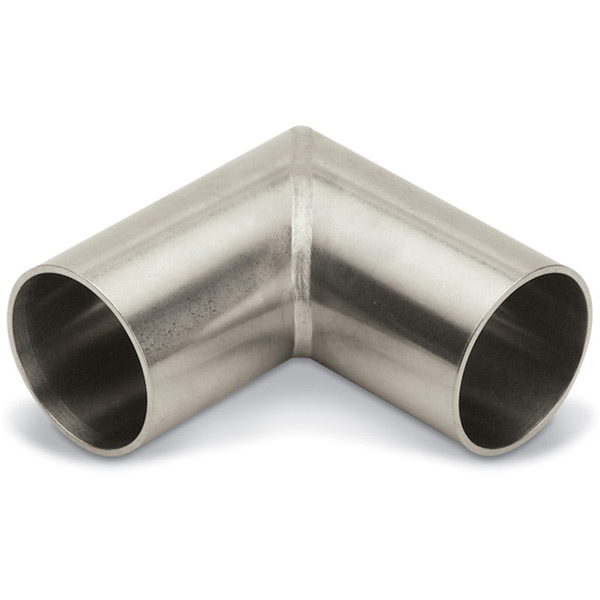

Representative Image
Weldable Tube 90° Mitered Elbows
We manufacture our weldable elbow tube fittings from 304 series stainless steel. Weld tube fittings are ideal for use as roughing lines on semiconductor process equipment and for foreline and pump exhaust lines in semiconductor subfabs.
Weldable Elbows Feature:
- Maximum cleanliness for UHV applications to > 10-13 Torr
- Temperature range from -200 to 450 °C
- Radius or miter design
- Common wall thicknesses and tube diameters listed; contact us with your specific requirements or for flanged versions
Specifications
| Vacuum Range | ≥ 1×10-13 Torr. |
| Temperature Range | -200° to 450° C |
Ordering Table
All dimensions listed in the table below, unless otherwise stated, are in inches.
All dimensions listed in the table below, unless otherwise stated, are in millimeters.
(Click column headers to sort data)
|
Drawing |
Wall Thickness |
Dim A |
Tube OD |
Description | Part Number |
|
Price | In Stock | Add To Cart | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Drawing |
Wall Thickness |
Dim A |
Tube OD |
Description | Part Number |
|
Price | In Stock | Add To Cart | ||||
|
0.04 | 1 | 0.75 |
ELBOW, |
E-075M |
|
$43.95 |
|
|||||
|
|
0.07 | 1.88 | 1 |
ELBOW, |
E-100M |
|
$53.15 |
|
|||||
|
|
0.07 | 2.25 | 1.5 |
ELBOW, |
E-150M |
|
$65.95 |
|
|||||
|
|
0.07 | 2.41 | 1.5 |
ELBOW, |
E-150MH |
|
P.O.R. |
|
|||||
|
|
0.07 | 3 | 2 |
ELBOW, |
E-200M |
|
$48.70 |
|
|||||
|
|
0.07 | 2.61 | 2 |
ELBOW, |
E-200MH |
|
$105.00 |
|
|||||
|
|
0.07 | 3 | 2.5 | Weldable Tube 90° Mitered Elbows | E-250M |
|
P.O.R. |
|
|||||
|
|
0.07 | 3.75 | 2.5 |
ELBOW, |
E-250MV |
|
$121.60 |
|
|||||
|
|
0.07 | 3.25 | 3 |
ELBOW, |
E-300M |
|
$135.65 |
|
|||||
|
|
0.08 | 3.88 | 4 |
ELBOW, |
E-400M |
|
$265.00 |
|
|||||
|
|
0.08 | 4.87 | 4 |
ELBOW, |
E-400MV |
|
$289.50 |
|
|||||
|
|
0.08 | 4.25 | 5 | Weldable Tube 90° Mitered Elbows | E-500M |
|
P.O.R. |
|
|||||
|
|
0.08 | 5 | 6 |
ELBOW, |
E-600M |
|
P.O.R. |
|
|||||
|
|
0.08 | 6.06 | 6 |
ELBOW, |
E-600MV |
|
$551.85 |
|
|||||
|
|
0.12 | 7 | 8 |
ELBOW, |
E-800M |
|
P.O.R. |
|
|||||
|
Drawing |
Wall Thickness |
Dim A |
Tube OD |
Description | Part Number |
|
Price | In Stock | Add To Cart | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Drawing |
Wall Thickness |
Dim A |
Tube OD |
Description | Part Number |
|
Price | In Stock | Add To Cart | ||||
|
|
1 | 25.4 | 19.1 |
ELBOW, |
E-075M |
|
$43.95 |
|
|||||
|
|
1.8 | 47.8 | 25.4 |
ELBOW, |
E-100M |
|
$53.15 |
|
|||||
|
|
1.8 | 57.2 | 38.1 |
ELBOW, |
E-150M |
|
$65.95 |
|
|||||
|
|
1.8 | 61.2 | 38.1 |
ELBOW, |
E-150MH |
|
P.O.R. |
|
|||||
|
|
1.8 | 76.2 | 50.8 |
ELBOW, |
E-200M |
|
$48.70 |
|
|||||
|
|
1.8 | 66.3 | 50.8 |
ELBOW, |
E-200MH |
|
$105.00 |
|
|||||
|
|
1.8 | 76.2 | 63.5 | Weldable Tube 90° Mitered Elbows | E-250M |
|
P.O.R. |
|
|||||
|
|
1.8 | 95.3 | 63.5 |
ELBOW, |
E-250MV |
|
$121.60 |
|
|||||
|
|
1.8 | 82.6 | 76.2 |
ELBOW, |
E-300M |
|
$135.65 |
|
|||||
|
|
2 | 98.6 | 101.6 |
ELBOW, |
E-400M |
|
$265.00 |
|
|||||
|
|
2 | 123.7 | 101.6 |
ELBOW, |
E-400MV |
|
$289.50 |
|
|||||
|
|
2 | 108 | 127 | Weldable Tube 90° Mitered Elbows | E-500M |
|
P.O.R. |
|
|||||
|
|
2 | 127 | 152.4 |
ELBOW, |
E-600M |
|
P.O.R. |
|
|||||
|
|
2 | 153.9 | 152.4 |
ELBOW, |
E-600MV |
|
$551.85 |
|
|||||
|
|
3.1 | 177.8 | 203.2 |
ELBOW, |
E-800M |
|
P.O.R. |
|
|||||
All dimensions listed in the table above, unless otherwise stated, are in inches.
All dimensions listed in the table above, unless otherwise stated, are in millimeters.
